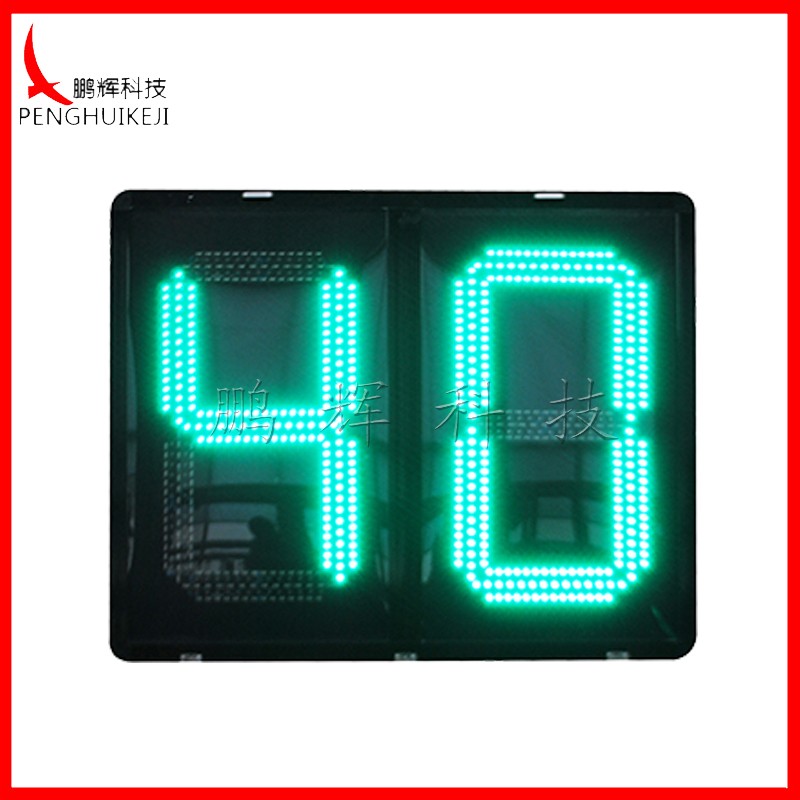

Countdown timer
The product description
Two red, yellow, green, the countdown stroke style, ten USES red countdown display, red, yellow, green bits using the countdown, according to the timer with the countdown to remind vehicles and pedestrians waiting time
Product features
The indicators in line with the law of the People's Republic of China (GA/T508-2014 standard for road traffic signal countdown display
Imported ultra bright LED the wick, four elements uniform chromaticity, Angle is big, visible distance, long service life.
Adopt silicon rubber seal, dustproof, waterproof, flame retardant, effectively put an end to all kinds of hidden dangers.
And the number
Rules: 960 * 1200
Lamp shell material: aluminum alloy
Installation method: horizontal, vertical loading
Light life: 100000 hours or more
Center wavelength: red 625 nm 625 nm, yellow, green, 505 nm
Resistant temperature: - 40 ℃ ~ + 85 ℃
Working voltage: DC12V / 24 V, AC (220 + / - 20%) V (choose one)
Visual Angle: 30 ° or greater
Visual distance: 500 m or more
Tepid performance: air relative humidity of 5% ~ 95% (without condensate)
Insulation resistance: 10 m Ω >
Wind loading: 145 m/h
Enclosure protection grade: IP53
